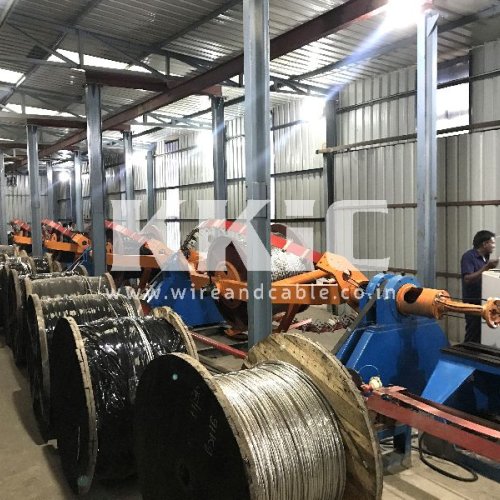

Skip Stranding Machine

Product Details

Stranding Products Stranding compact bare Aluminium and Copper wire, ACSR and Aluminium Alloy Wire
Laying Products Wire2,3,4,5 PVC/XLPE Cores and Bare messenger for Aerial Bunched Cables
Models Stranding and Laying
Rotor Speed 200 RPM – 900 RPM
Bobbin Size 630 mm – 1250 mm
Cradles Dynamically Balanced Floating Type
Bow Special high tensile steel curved beams
Lay Plate Special Adjustable Lay Plate Arrangement
PLC + HMI Available for easy lay and line speed setting

Features :

  • The machine is suitable for stranding 1+6 compact, bare Al/Cu wire, ACSR and Aluminium alloy wire. The laying model is suitable for laying 2,3,4 core PVC / XLPE Insulated cores and Bare messenger for Aerial Bunched Cables.
  • Aerodynamically designed special high tensile steel bows for wire guide arrangement
  • Dynamically balanced rotors
  • Machine drive by mechanical synchronization or by individual AC motor drive for machine components
  • Timing belt drive for each rotor with pneumatic disc brakes.

Yes! I am interested

Submit Your Requirement


Product Details

Model Rotor Speed Wire / Core Dia Size
KKIC/1+6/SSM 900 RPM 1.5 - 5.0 mm 6 Sqmm to 35 Sqmm
KKIC/3/SSM/1000 450 RPM 2.5 - 10 mm 4 x 1.5 Sqmm, 2 Core, 3 Core and 4 Core
KKIC/3/SSM/1250 200 RPM 5 - 18 mm 4 x 1.5 Sqmm, 2 Core, 3 Core and 4 Core
