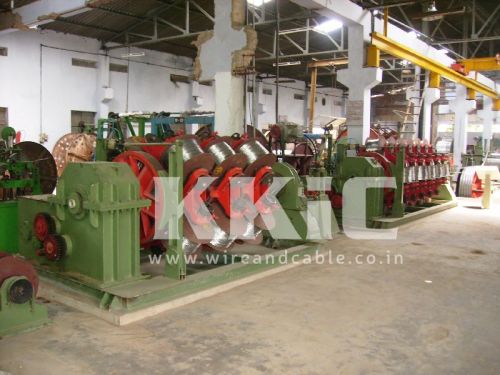

Rigid Stranding Machine Manufacturer
Contact Us
Kay Kay Industrial Corporation
6-A, Industrial Estate, Sirhind Road, Patiala, Punjab - 147004, India
Mobile : +91-9417200849, +91-9888988913, +91-9376700001
Call Us : 08045135327
 |
|
 |
Features
- This machine is suitable for stranding and compacting of the pre-spiralled/sector copper or aluminum conductor & round multi wire compressed conductors of Aluminum, Aluminum alloy, AS wire, overhead conductor ACSR / AAAC / AAC and copper
- Heavy duty fork type cage structure.
- Machine drive by mechanical synchronization or by individual AC motor drive for machine components
- Hardened and ground gears
- Centralized lubricating system for gears & bearings.
Specifications
| Configuration | 1+6+12+18+24+30+36 |
| Type | Rigid / Planetary |
| Fork | 4 sectional fabricated robust forks |
| Machine Base | Machined Heavy Duty |
| Bobbin Size | 400 mm – 630 mm |
| Lay Plate | Special Adjustable Lay Plate Arrangement |
| PLC + HMI | Available for easy lay and line speed setting |
Product Details
| Model | RPM of Cage | Wire Dia | Lay Length |
| KKIC/RSM/19B | 150 | 1.5-5 mm | 170-200mm |
| KKIC/RSM/37B | 125 | 1.5-5 mm | 225-260mm |
| KKIC/RSM/54B | 100 | 1.5-5 mm | 225-260mm |
| KKIC/RSM/61B | 100 | 1.5-5 mm | 290-370mm |
