Core Laying Machine Exporter

Home › Products › Core Laying Machine Exporter


  • Core Laying Machine 01
  • Core Laying Machine 02
  • Core Laying Machine 03
  • Core Laying Machine 04
  • Core Laying Machine 05
  • Core Laying Machine 01
  • Core Laying Machine 02
  • Core Laying Machine 03
  • Core Laying Machine 04
  • Core Laying Machine 05
Get Best Quote

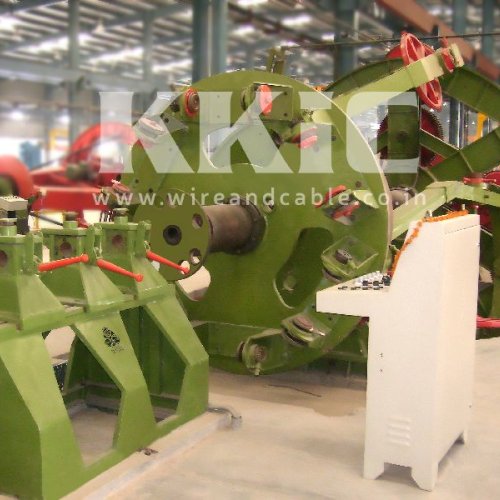

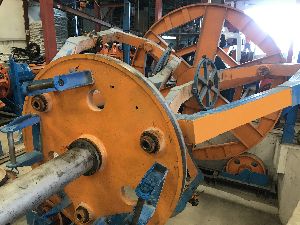

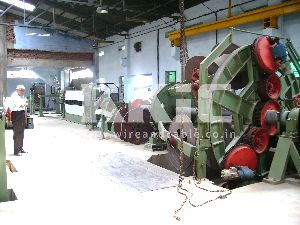

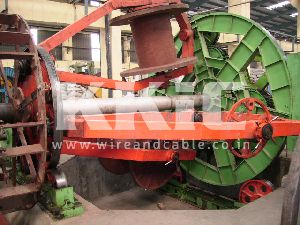

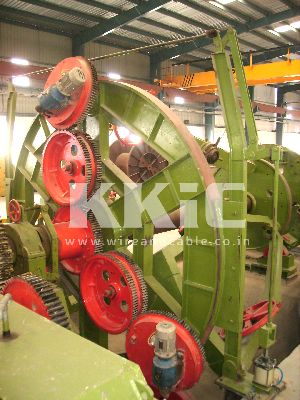

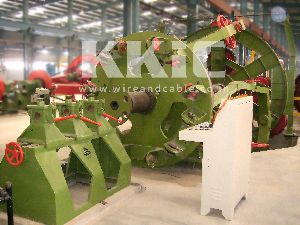

Core Laying Machine

Product Details

Configuration For 3-7 Cores
Type Manual / Sector Correction
Cradle Floating Type
Rotor Support Under Rollers
Bobbin Size 800 mm – 1800 mm
Haul Off Unit Caterpuller / Capstan
PLC + HMI Available for easy lay and line speed setting

Features :

  • The machine is suitable for laying 3-7 core PVC/XLPE Insulated round cables with back twist and sector cables without back twist
  • Motorized sector correction model available
  • Centralized lubricating system for gears & bearings
  • Machine drive by mechanical synchronization or by individual AC motor, drive for machine components
  • Heavy, robust fabricated cradles
  • Hardened and ground gears
  • Haul off through a twin grip cater puller or heavy duty taper machined capstan with fleeting ring

Yes! I am interested

Submit Your Requirement


Product Details

Model Rotor Speed Caterpillar Take up
KKIC / LU / 1000 50 RPM 7 + 7 + 1 Cyl 2000 mm
KKIC / LU / 1200 40 RPM 8 + 8 + 1 Cyl. 2250 mm
KKIC / LU / 1600 25 RPM 10 + 10 + 1 Cyl. 2600 mm
KKIC / LU / 1800 20 RPM 10 + 10 + 1 Cyl. 3150 mm
